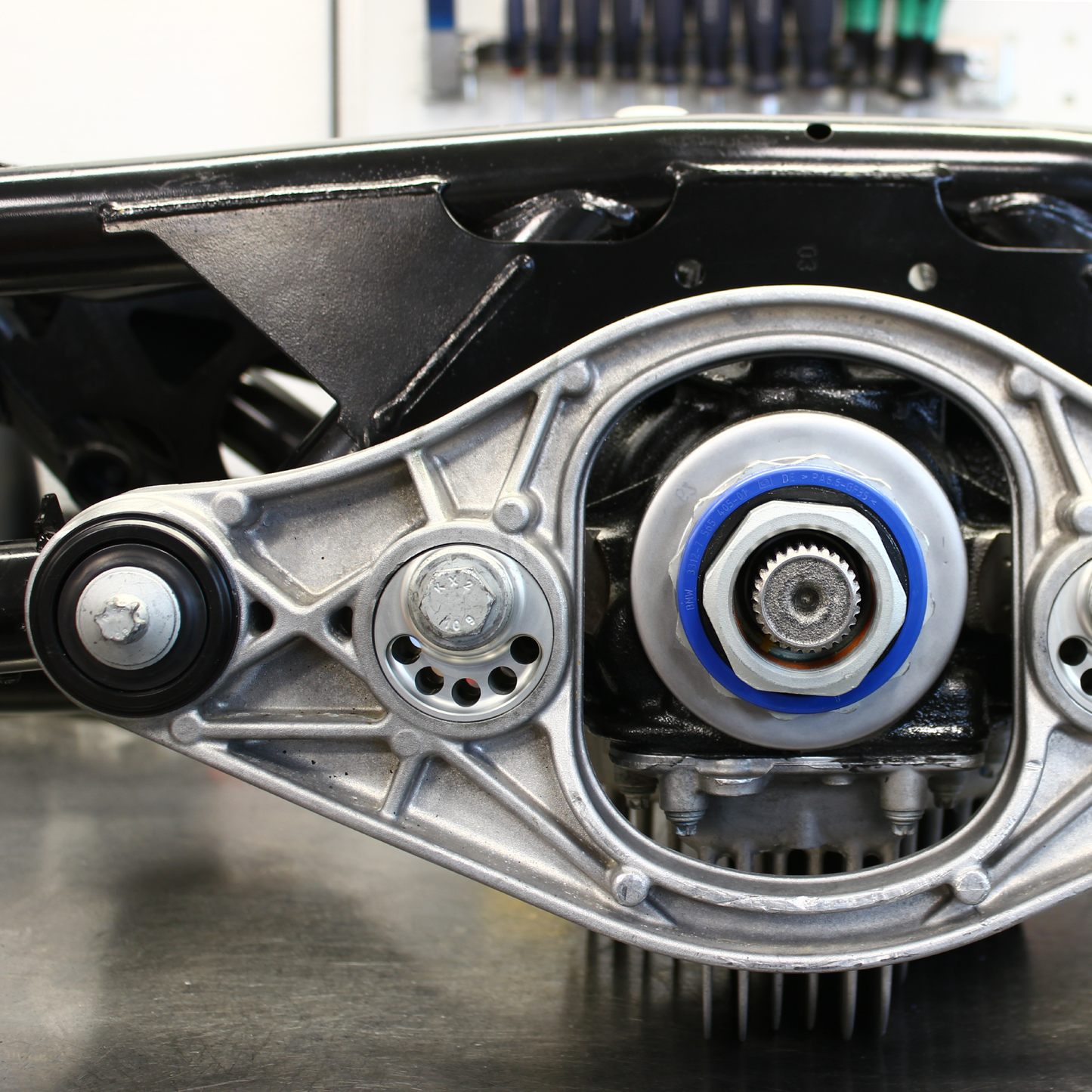

KMP BMW G-Series 4-point Offset Bracket kit

This differential mounting kit is engineered to enhance the differential stability of BMW G8X models by replacing the OEM rubber mounts (single rear mount) with a dual-mounting system. Designed specifically for motorsport and high-performance applications, this kit increases strength and durability.

Key Features and Benefits:

• Dual Mounting Points: Adds a second mounting point for increased differential stability, supporting the demands of high-performance and motorsport use.
• Optimized Differential Positioning: The offset bracket lifts the differential, reducing driveshaft incline, which minimizes friction, wear, and heat, extending drivetrain lifespan.

Innovative Design:

• Sliding Bushes for Controlled Flexibility: The mounting system incorporates sliding bushes to allow one degree of freedom, balancing rigidity for performance while avoiding stress from a fully rigid mount.
• High-Quality POM Bushes: Constructed from Polyoxymethylene (POM), these bushes absorb peak forces and minor chassis deformations. Steel inserts ensure stable bolt torques and prevent material deformation.

Offset Type Advantage:

• Improved Driveshaft Angles: The 10mm differential lift towards the subframe optimizes driveshaft angles for lowered vehicles, enhancing driveshaft performance and longevity.

Compatibility and installation notes:

• This product can only be installed on a differential that does not use the GHAS motor, such as Drexler. If your setup does include the GHAS motor, please refer to the 3- point  version designed for use with the OEM BMW differential.

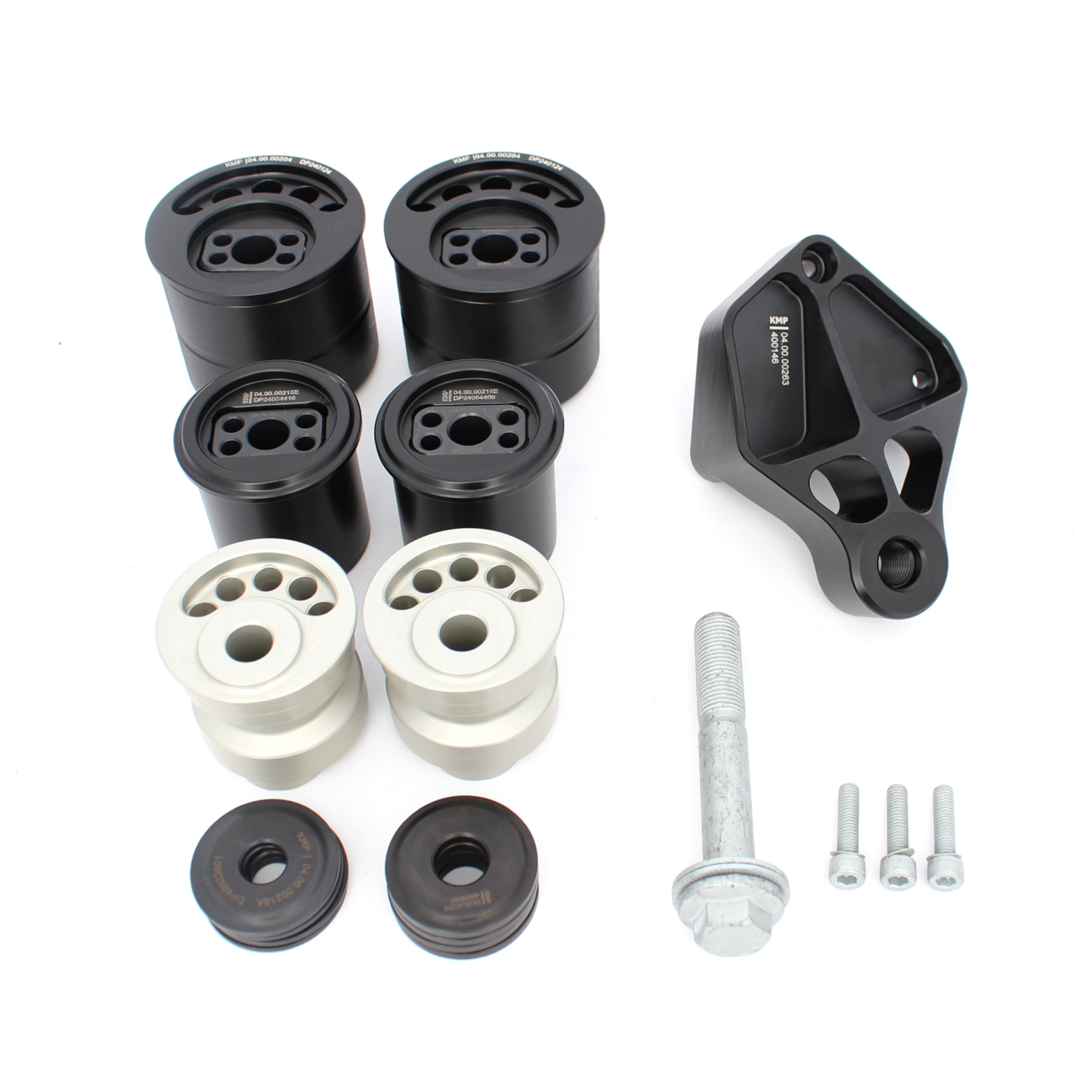

Complete Installation Kit:

This kit includes all necessary components, such as washers and bolts, for a straightforward installation.
